Marsboard AM335X Feature

Hardware specification

CPU TI ARM Cortex-A8
Memory (SDRAM) 512MB DDR3 SDRAM
Onboard Storage 4GB eMMC Flash, SD (Max. 64GB) / MMC card slot
Onboard Network 10/100 Ethernet RJ45
Video Outputs HDMI
Power Supply Requires regulated 5VDC 2A power supply with a 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug.
USB 2.0 Ports 1 x USB 2.0 Host, 1 x USB 2.0 OTG
Buttons Power, Reset, Boot selection
Expansion 2.0mm Expansion pin headers

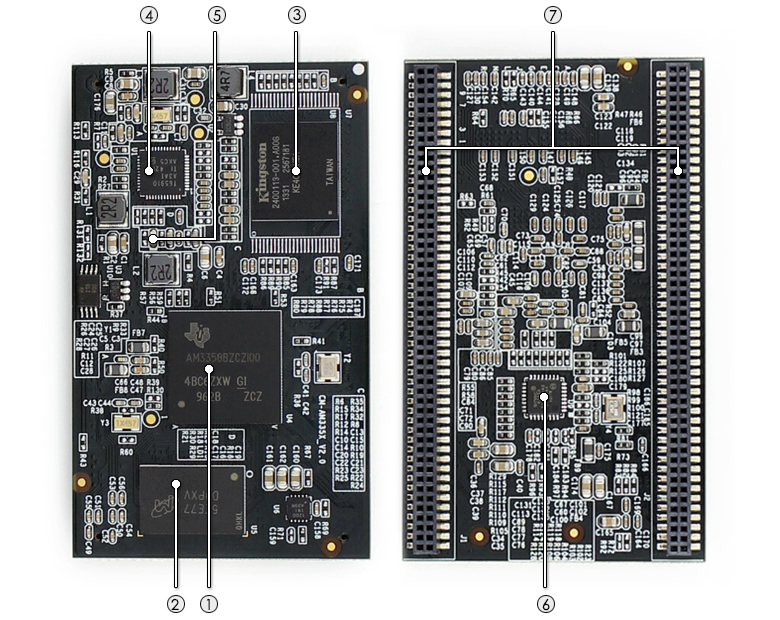

  1. TI ARM Cortex A8 @ 1Ghz + SGX530 3D Graphics Engine
  2. 512MB DDR3 SDRAM
  3. 4GB eMMC Flash
  4. Power Management Unit - TPS65910
  5. Power Indicator LED
  6. 10/100M Ethernet PHY - LAN8710A
  7. Expansion headers : two 50x2 pin, 1.27mm pitch
  1. HDMI type A socket
  2. TDA19988 LCD to HDMI converter
  3. 1 x USB 2.0 Host port
  4. JTAG interface (not soldered)
  5. mrcro SD card (TF card)socket, in bottom side
  6. User Indicator LED
  7. Power Indicator LED
  8. Reset button, in bottom side
  9. Power Supply - 5V/1A
  10. RJ45 10/100M Ethernet
  11. USB Debug port
  12. USB Debug indicator LED
  13. USB-OTG Port
  14. Boot selection
  15. CR1220 RTC Battery Holder
  16. CM-AM335X core board interface
  17. 2.0mm Expansion pin headers
